# Variant image grouped

Color swatches configured with the Variant Image Grouped feature can display images that are related to the selected color variant. This allows customers to see variations in product appearance based on color selection directly on the product page.

Demo product: [Black Stripe Dresses](https://demo-alukas.myshopify.com/products/black-stripe-dresses)

Below are the step-by-step instructions to set up Variant Image Grouped:

{% hint style="success" %}

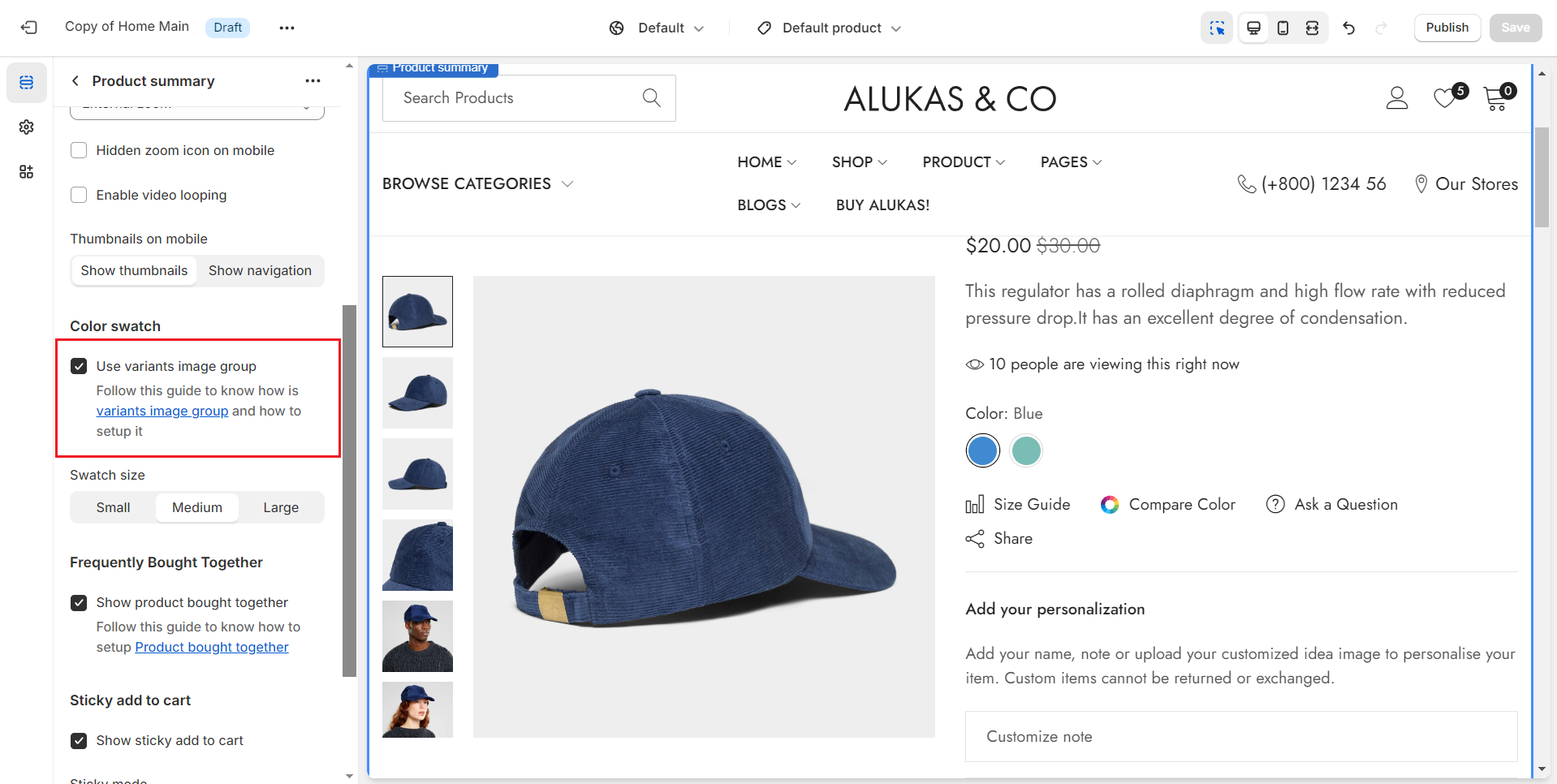

**Step 1:** In Theme customize, go to the **Product page > Default product > Product summary**, you guys will see the **Use variants image group** option here:
{% endhint %}

<figure><img src="/files/cY79Z678bU2pIm8I3Aso" alt=""><figcaption></figcaption></figure>

{% hint style="success" %}
**Step 2:** Go to **Products** select product you would like to add **Variant Image Grouped**
{% endhint %}

{% hint style="success" %}

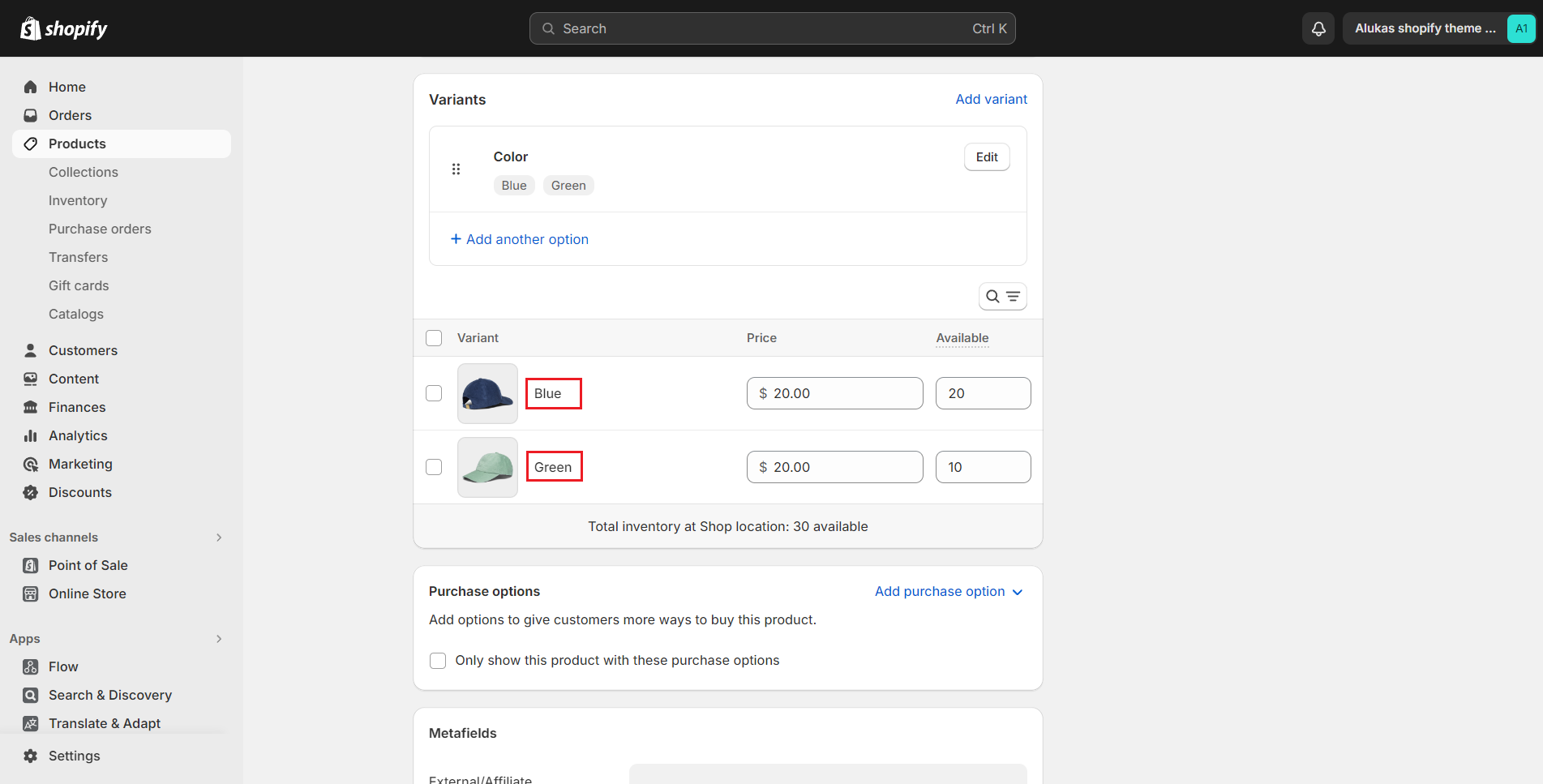

**Step 3:** Copy the colors of **Variant section**
{% endhint %}

<figure><img src="/files/kVVU2FLmXGBXDjOrv1T4" alt=""><figcaption></figcaption></figure>

{% hint style="success" %}

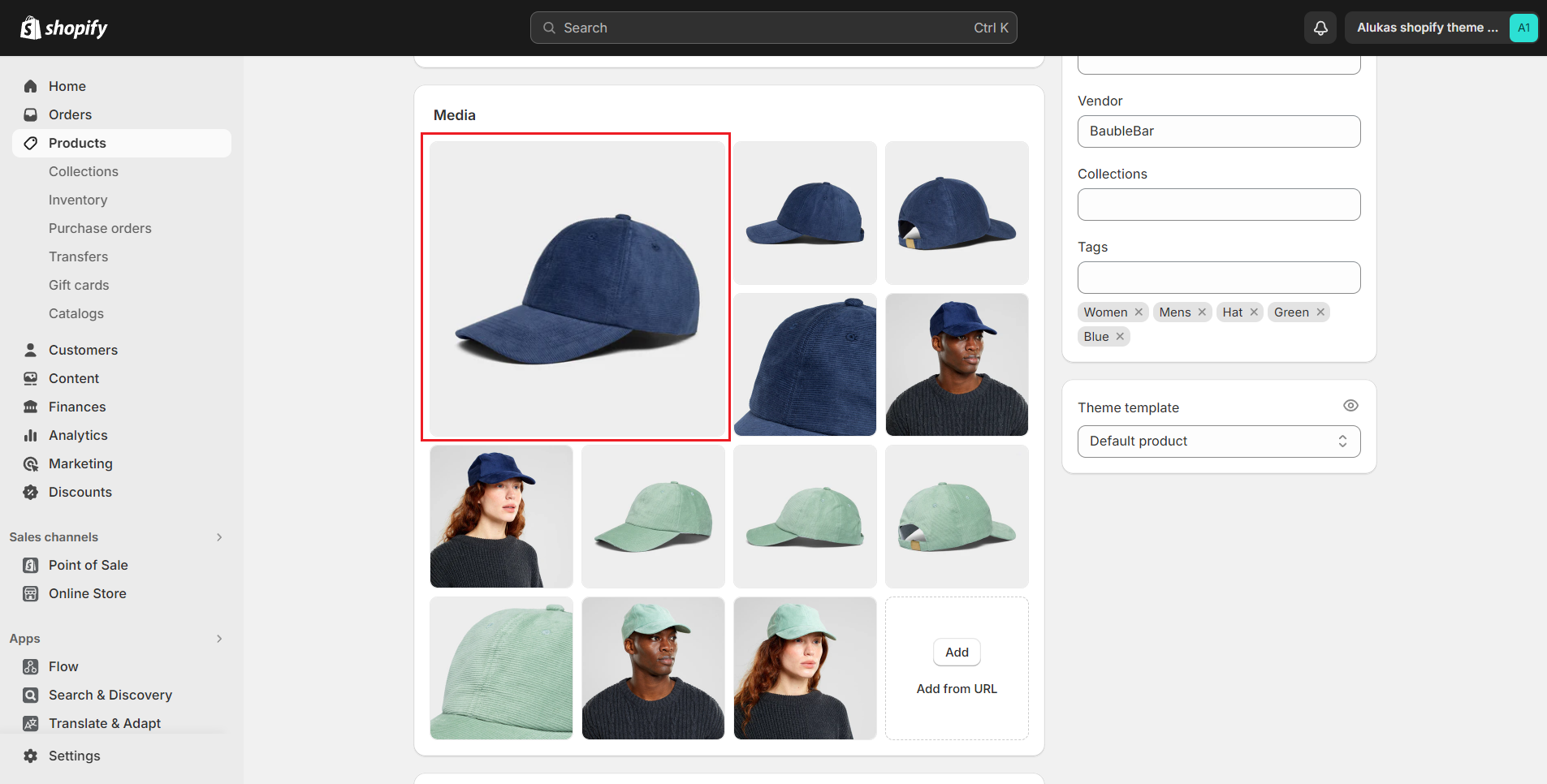

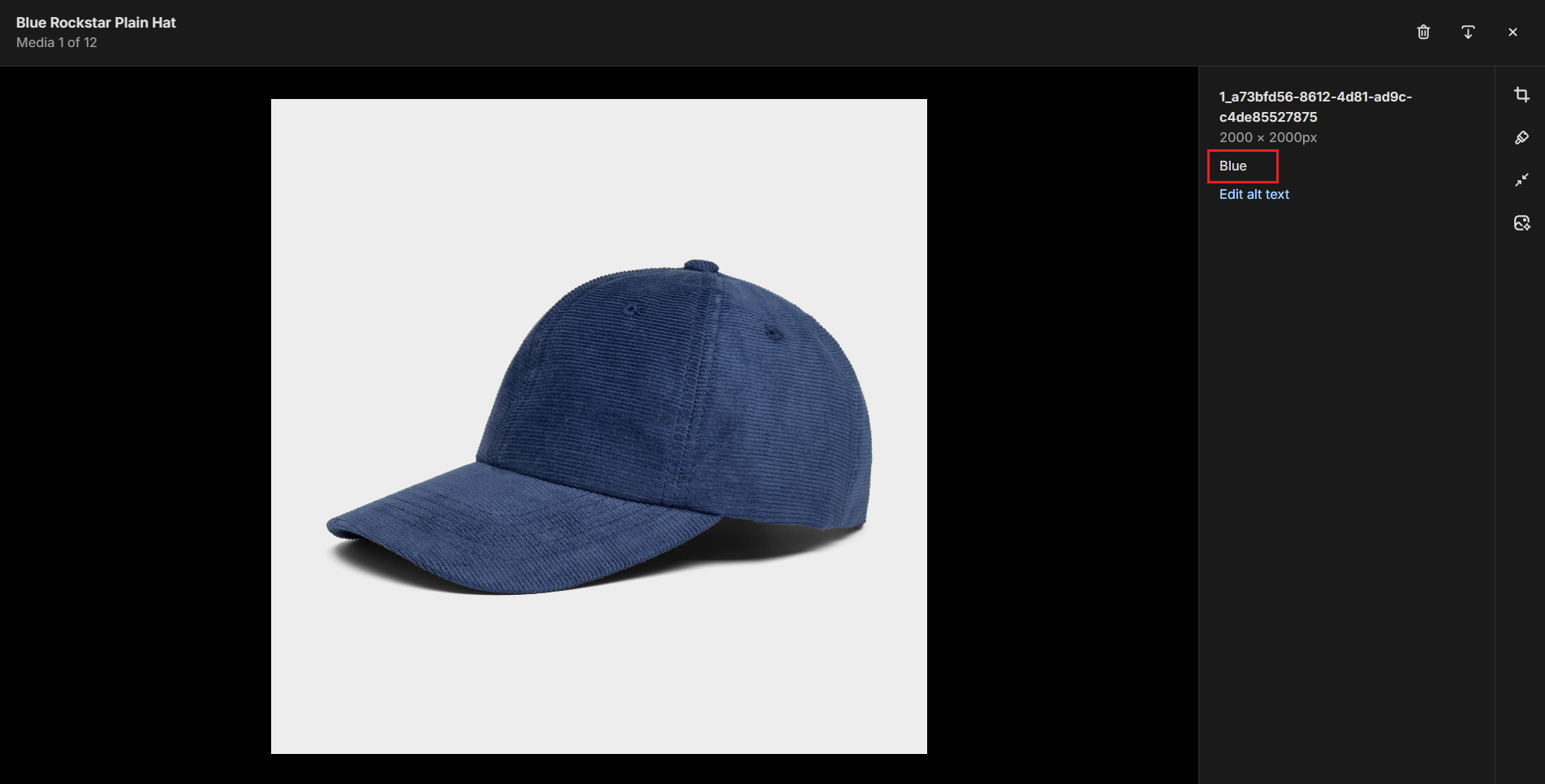

**Step 4:** Click on **image product** -> Paste **name of the variant color** on **“Image alt text”** section of a product image.
{% endhint %}

<figure><img src="/files/KHurAtCZMNbHCF9UvjZC" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/U17ARha1O9MuGJkMqvIG" alt=""><figcaption></figcaption></figure>


---
